ATV Wheel Bearing – Knuckle

Note: These instructions are very general, and you should have a service manual for your particular vehicle to get a better understanding of your particular setup and have factory recommended torque levels and specifications on hand.

Check out the Additional Service Information Resources for more information on finding service information for your specific vehicle.

Prep

Thoroughly clean the vehicle to make the job easier and prevent contamination of the new components during installation.

AB-Front-Wheel-Bearing_0007

Get your ATV wheel bearing kit from ALL BALLS RACING.

AB-Front-Wheel-Bearing_0008

Remove the contents of your ALL BALLS RACING carrier kit. Layout the components in an organized manner for easy installation. Place the new bearings in the freezer for about an hour before installing them.

Removal

Support the vehicle with a suitable stand or jack.

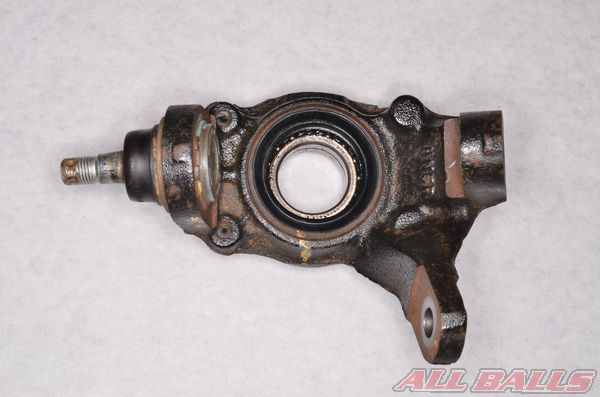

AB-Front-Wheel-Bearing_0010

Remove the steering knuckle from the vehicle.

AB-Front-Wheel-Bearing_0012

AB-Front-Wheel-Bearing_0013

Remove the dust seals with a seal pick or flat blade screwdriver.

AB-Front-Wheel-Bearing_0014

AB-Front-Wheel-Bearing_0016

Remove the snap ring with snap ring pliers.

AB-Front-Wheel-Bearing_0017

Press the bearing out of the knuckle. Make sure the bearing has room to exit the knuckle.

AB-Front-Wheel-Bearing_0018

Clean away all of the old grease, grime, and rust from the bearing bores.

Inspect the bearing bores for wear and damage. Make sure the bores are free of damage or burrs that may cause the new bearings to hang during installation.

Bearing Installation

AB-Front-Wheel-Bearing_0020

Heat the bearing area of the knuckle with a heat gun, take one of the bearings out of the freezer and install it into the bore.

AB-Front-Wheel-Bearing_0021

Press the bearing into place with a bearing installer tool or a socket that matches up with the outer race of the bearing.

AB-Front-Wheel-Bearing_0023

Only press on the outer race of the bearing. Make sure the bearing is fully seated. The snap ring groove should be visible.

AB-Front-Wheel-Bearing_0024

AB-Front-Wheel-Bearing_0025

Install the new snap ring into the groove with snap ring pliers.

DSC_7082

Apply grease to the lips of the dust deals.

AB-Front-Wheel-Bearing_0026

Press in the seals by hand or use a suitable driver that matches up with the outside diameter as the dust seal if needed.

Install the knuckle and assemble the vehicle.

To make your bearings last longer- avoid pressure washing around the bearing seals for extended periods of time. Pressure washers will push water right around seals causing premature rusting of the bearings.

YZ450_2010_0934

INSTALL ALL BALLS RACING STICKER!
