Ball Joint – Knuckle

SAFETY FIRST: Protective gloves and eyewear are recommended at this point.

Note: These instructions are very general, and you should have a service manual for your particular vehicle to get a better understanding of your particular setup and have factory recommended torque levels and specifications on hand.

Check out the Additional Service Information Resources for more information on finding service information for your specific vehicle.

Prep

Thoroughly clean the vehicle to make the job easier and prevent contamination of the new components during installation.

AB-Lower-Ball-Joint_0001

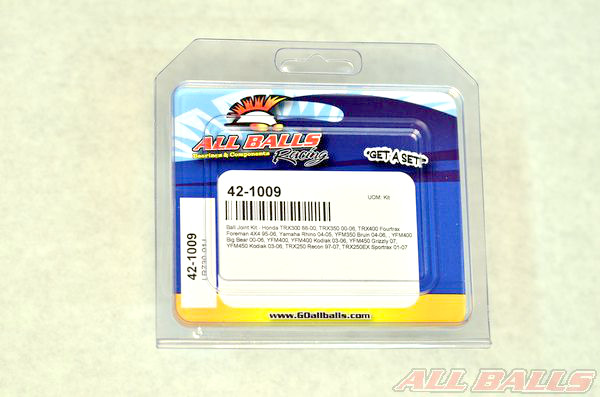

Get your ball joint kit from ALL BALLS RACING.

AB-Lower-Ball-Joint_0003

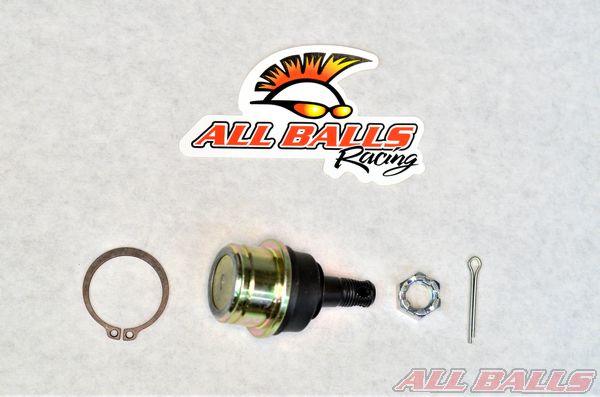

Remove the contents of your ALL BALLS RACING ball joint kit. Layout the components in an organized manner for easy installation. Note: wait to do this until the old parts are removed and you are ready to begin installing the new components.

Removal

ball-joint-trx350_0006

Remove the wheel hub and brake assemblies from the knuckle. See the vehicle’s service manual for specific information.

AB-Lower-Ball-Joint_0001a

Spray the tapered portion of the ball joint with a penetrating lube to aid in freeing it.

ball-joint-trx350_0002

Free the ball joints with a ball joint separator tool.

AB-Lower-Ball-Joint_0002b

AB-Lower-Ball-Joint_0003c

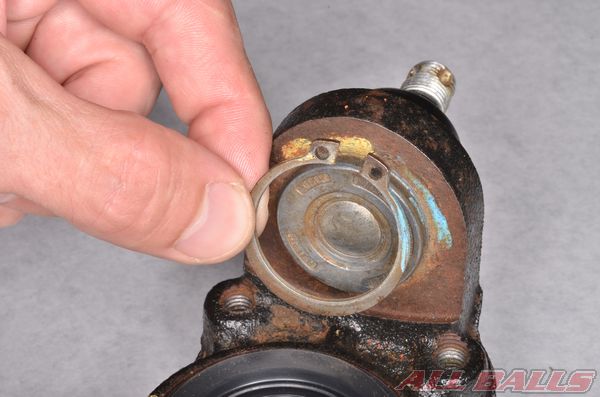

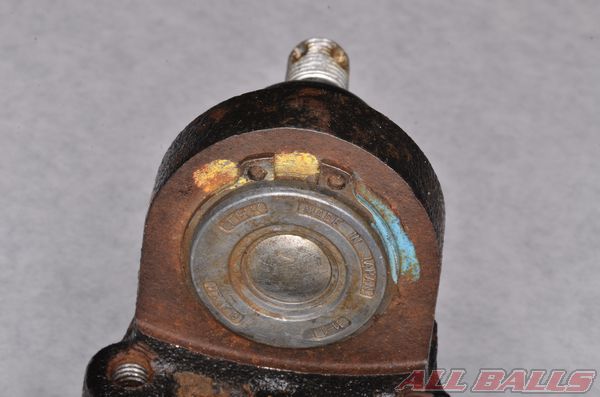

Remove the snap ring with snap ring pliers.

AB-Lower-Ball-Joint_0004

Use a vise and appropriate tools to press the ball joint out of the knuckle. Make sure the ball joint has room to exit the knuckle.

AB-Lower-Ball-Joint_0006

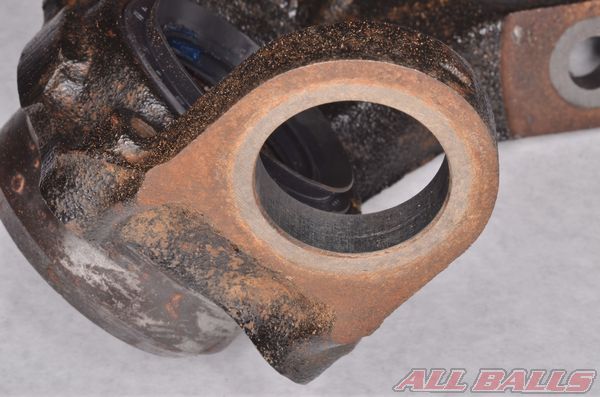

Clean away all of the old grime and rust from the ball joint bores. Remove any burrs that may inhibit the installation of the new ball joints.



Installation

AB-Lower-Ball-Joint_0007

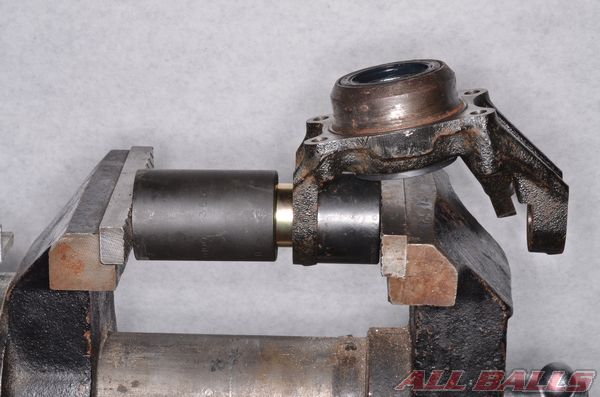

Install the new ball joint into place. Use a suitable tool that will only contact the metal outer lip of the ball joint. Do not damage the ball joint boot.

AB-Lower-Ball-Joint_0008

Make sure the ball joint is fully seated and the boot has not been damaged.

AB-Lower-Ball-Joint_0009

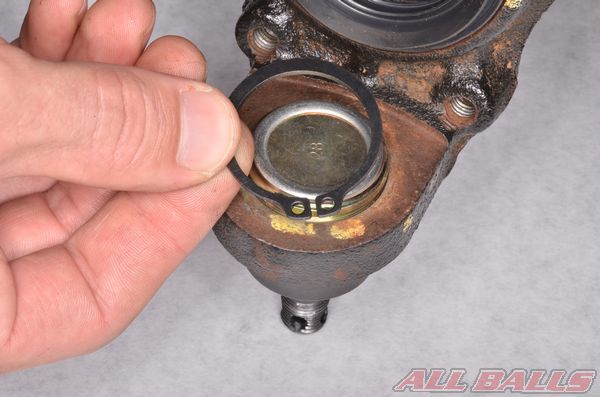

The snap ring groove should be visible.

AB-Lower-Ball-Joint_0010

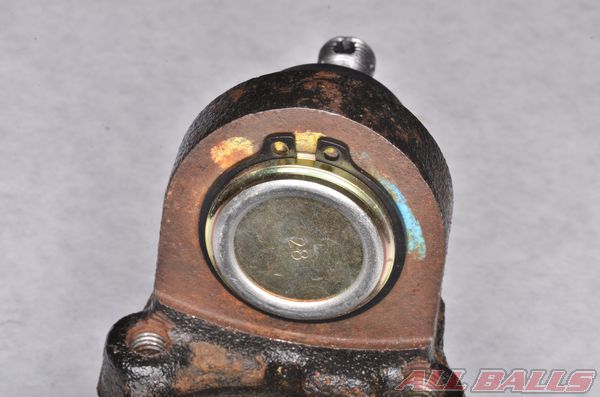

Install the new snap ring into the snap ring groove.

ball-joint-trx350_0006

Install the knuckle to the suspension arms, tighten the nuts to specification and install the new cotter pins.

YZ450_2010_0934

INSTALL ALL BALLS RACING STICKER!
