| Spark plug: | NGK CR7E, DENSO U22ESR-N |
| Spark plug gap | 0.7 ~ 0.8 mm (0.028 ~ 0.031 in.) |
Removal
Be sure that the ignition switch is in the OFF position.
The converter air duct must be removed to access the rear spark plug.
Loosen the air duct clamp screws with a #2 Phillips screwdriver.
Remove the air duct.
Pull the spark plug caps off of the spark plugs.
Clean off the area surrounding with compressed air or a shop towel to make sure debris doesn’t get into the combustion chamber when the spark plug is removed.

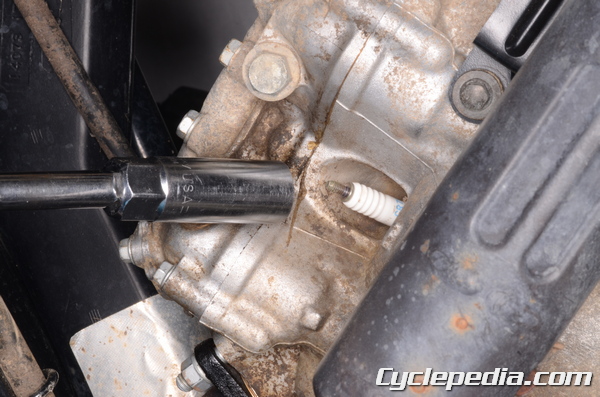

Remove the spark plug using a 5/8 in deep well spark plug socket.
NOTE: Always wear safety glasses when using compressed air and never point it directly at yourself or anyone else.
Inspection

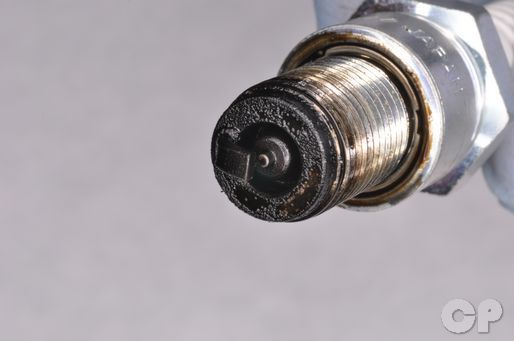

Inspect the spark plug for signs of damage. The color of the spark plug can indicate how the mixture is burning. A white colored plug shows a lean mixture, where a dark plug shows a rich mixture. Do not hesitate to replace a spark plug. Always replace a spark plug if any part of it is damaged.
See the spark plug troubleshooting chart for more information.
https://www.cyclepedia.com/spark-plug-troubleshooting/
Always check the gap of the spark plugs before installation. If the gap needs to be adjusted bend the ground electrode carefully.
Installation
| Spark plug: | NGK CR7E, DENSO U22ESR-N |
| Spark plug gap | 0.7 ~ 0.8 mm (0.028 ~ 0.031 in.) |
Install the spark plug, and torque it to specification a 5/8 in deep well spark plug socket.
| Fastener | Torque | ||
| N-m | kgf-m | ft-lb | |
| Spark plugs | 13 | 1.3 | 113 in-lb |
Do not over tighten the spark plug. The cylinder head is made out of soft metal, and it can be easily damaged.
Install the spark plug caps onto the spark plugs.
Install the air duct.
Tighten the air duct clamp screws securely with a #2 Phillips screwdriver.
